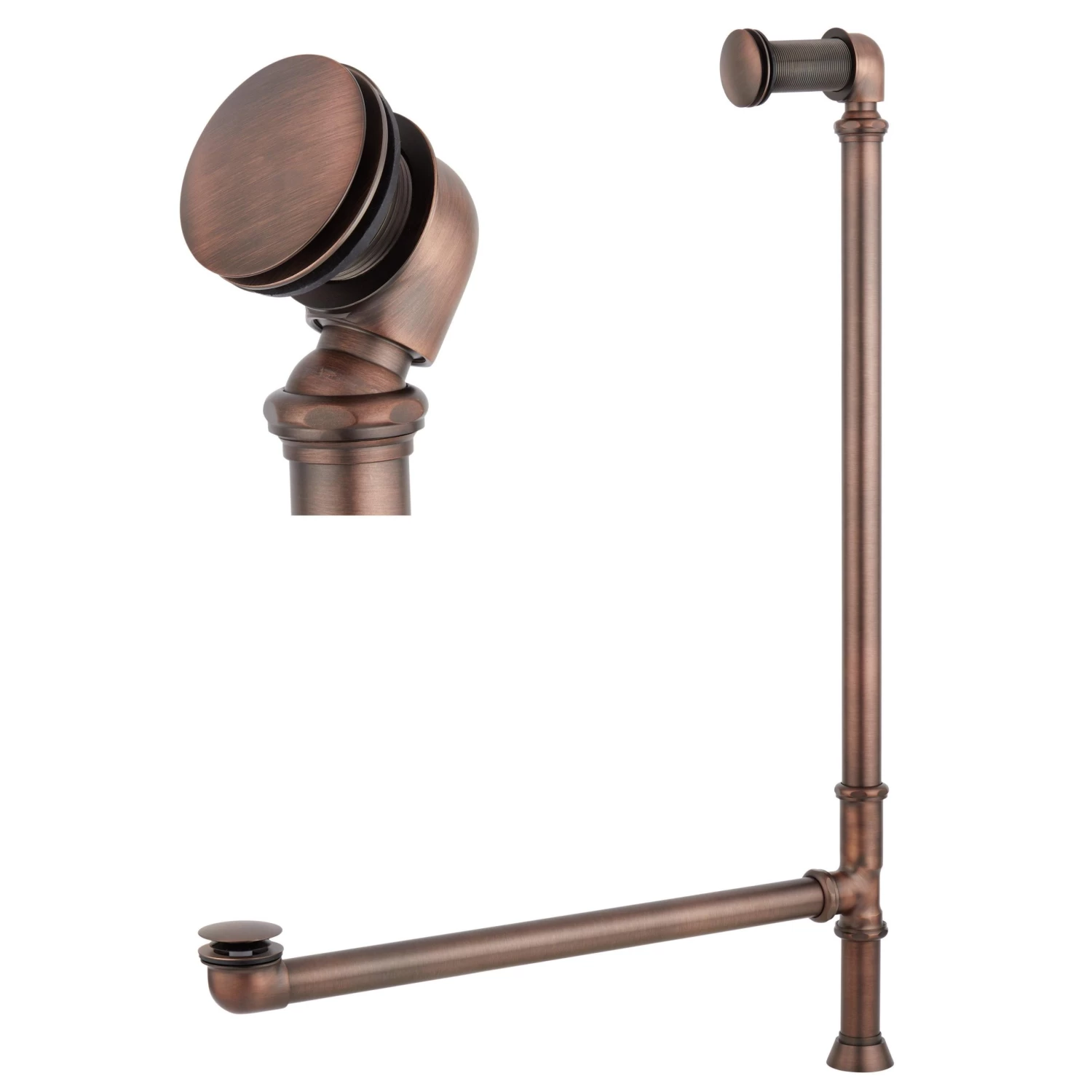

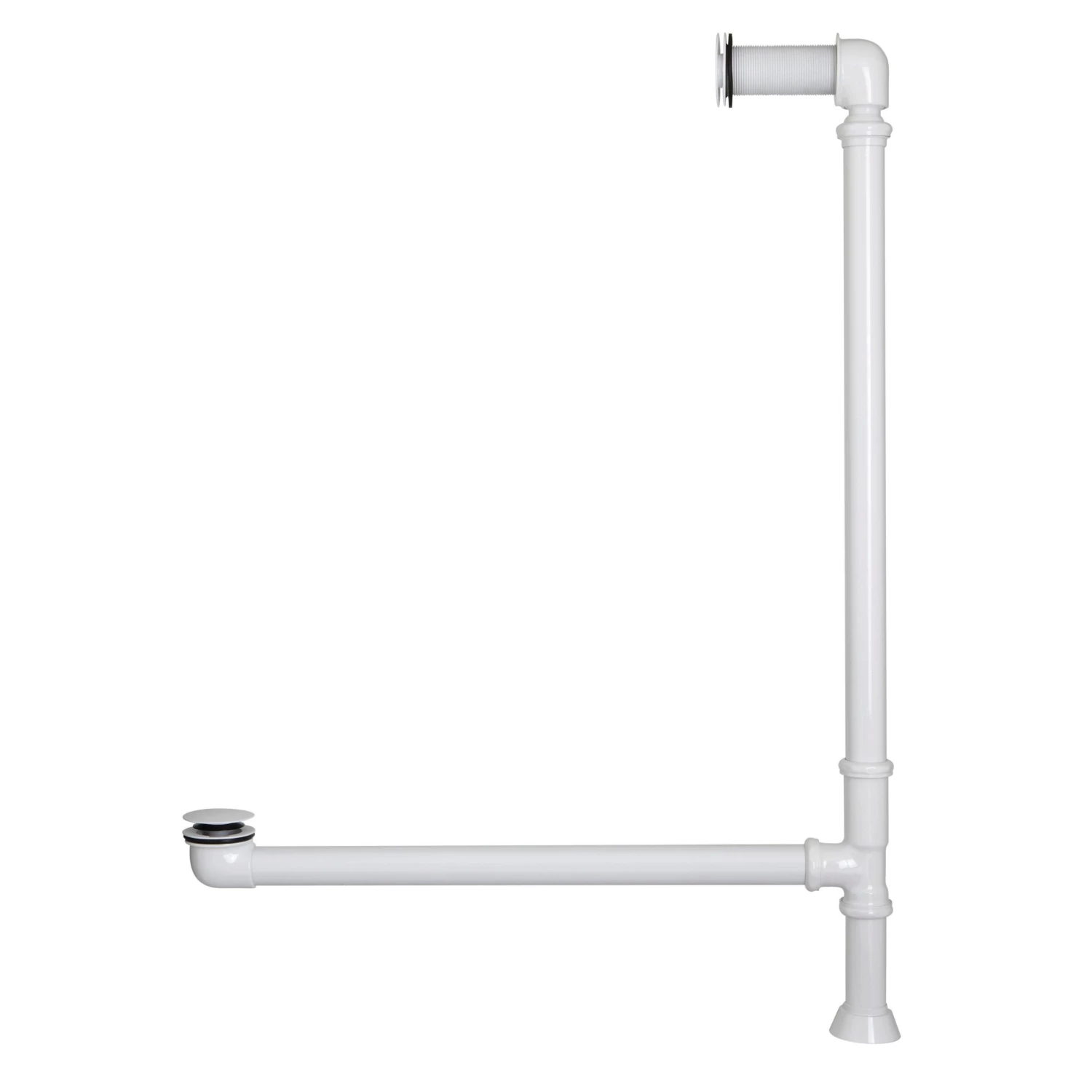

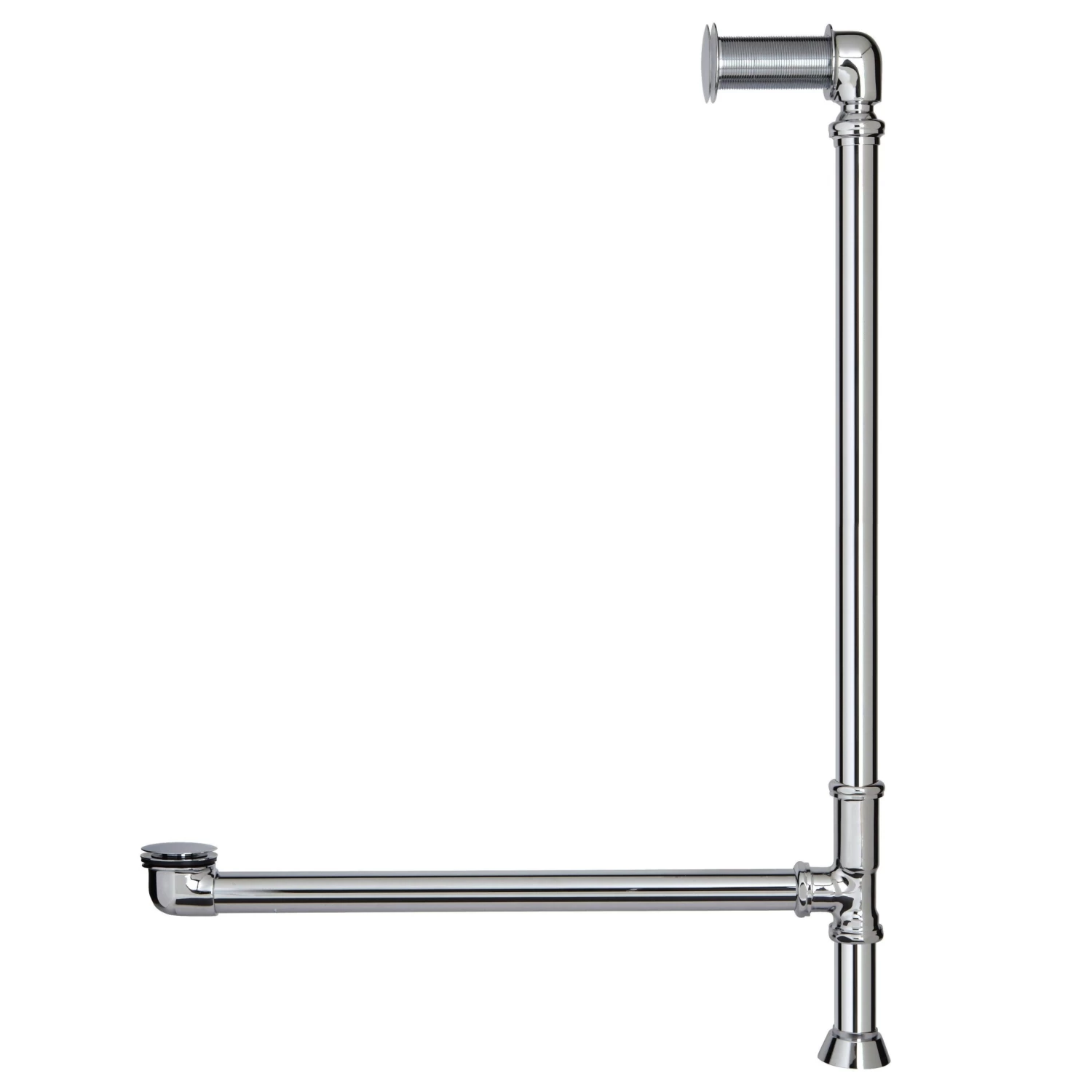

Extended Pop-Up Tub Drain – Swivel Head – Standard Overflow – 1-1/2″ Tubing

This pop-up tub drain and overflow kit includes a Swivel Head to accommodate straight and angled tub walls. The overflow is designed to remain in a fixed, open position to collect water and send it to the tub drain. This product will fit most antique and modern clawfoot tubs, as well as freestanding tubs.

• Product is a Signature Hardware exclusive design.
• Overflow does not have the ability to be sealed.
• Can be used on double wall tubs.
• Made from solid brass materials.
• 1-5/16″ Thread length dimensions: 27-1/4″ L drain pipe, 39-1/8″ H overflow pipe. Accommodates tub walls up to 7/8″ thick at overflow.
• 2-3/8″ thread length dimensions: 27-1/4″ L drain pipe, 39-1/8″ H overflow pipe. Accommodates tub walls up to 1-3/4″ thick at overflow.
• 2-15/16″ thread length dimensions: 27-1/4″ L drain pipe, 39-1/8″ H overflow pipe. Accommodates tub walls up to 2-1/2″ thick at overflow.
• 3-11/16″ thread length dimensions: 27-1/4″ L drain pipe, 39-1/8″ H overflow pipe. Accommodates tub walls up to 3-3/8″ thick at overflow.
• 4-1/4″ thread length dimensions: 27-1/4″ L drain pipe, 39-1/8″ H overflow pipe. Accommodates tub walls up to 3-3/4″ thick at overflow.
• 1-1/2″ tubing fits most new plumbing. Hook up to 1-1/2″ ABS PVC & Copper pipe.
• Pipes may be cut to size at installation.
• Will fit antique and modern clawfoot tubs, as well as freestanding tubs.
