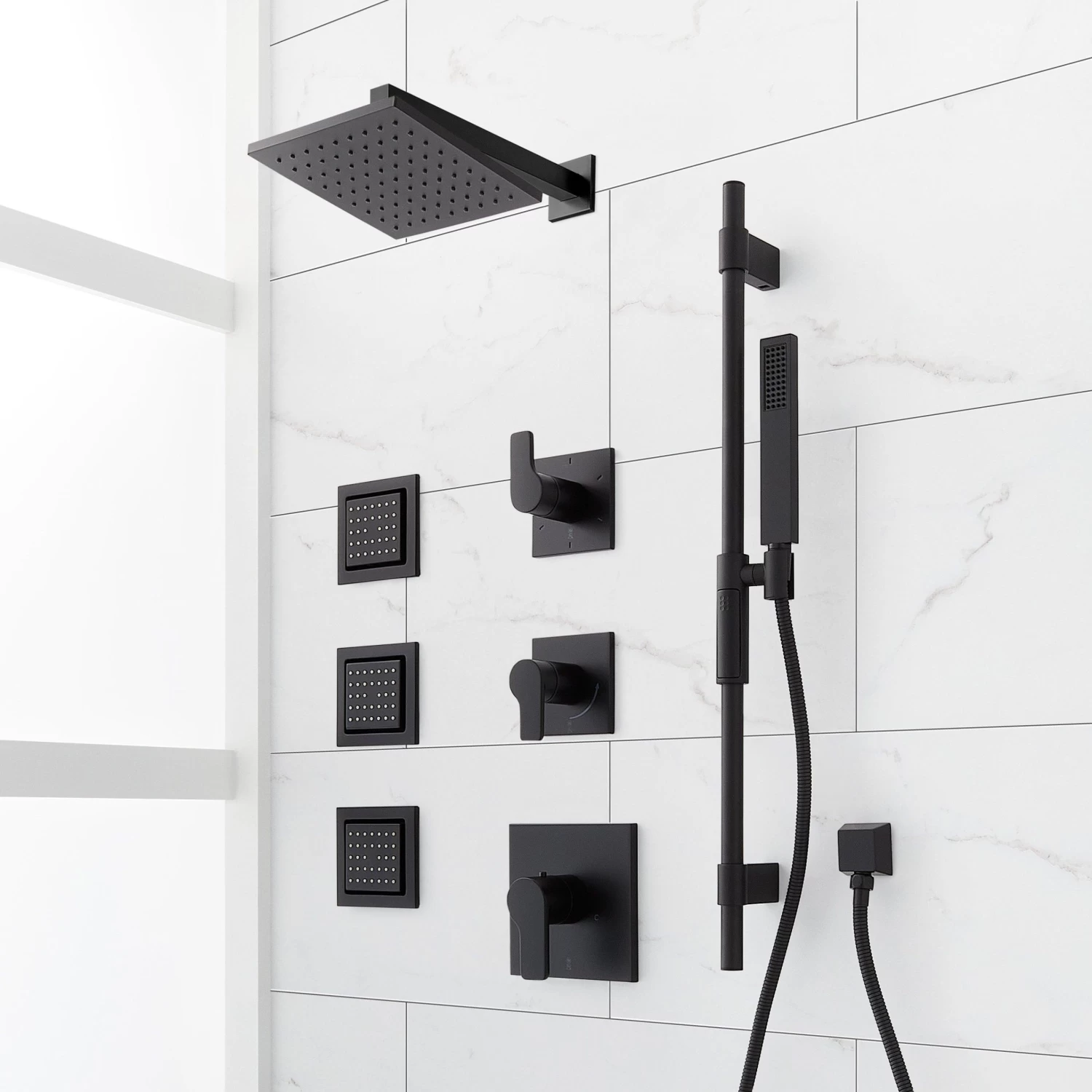

For a space teeming with modern luxury, Hibiscus Thermostatic Shower System with 3 Body Sprays, Slide Bar and Hand Shower is a perfect choice. From the rainfall shower head, enjoy your preferred water temperature held consistently thanks to built-in thermostatic technology. Furthering a spa-like experience, this system includes three body sprays and a convenient hand shower, mounted on a vertical slide bar to make reaching targeted areas easier than ever. As eye-catching as it is functional, the Hibiscus flaunts a sleek, uncluttered look with its angular silhouettes throughout each piece. Ensuring lasting beauty, a variety of corrosion-resistant finishes are available to choose from.
- Thermostatic technology keeps shower temperature within 1 degree Celsius.
- Temperature outlet factory calibrated to 104 degrees Fahrenheit and can be easily adjusted up or down to user’s comfort level.
- Six total settings allow for shared water flow between outlets, giving you the ability to use two functions at once.
- Metal handles.

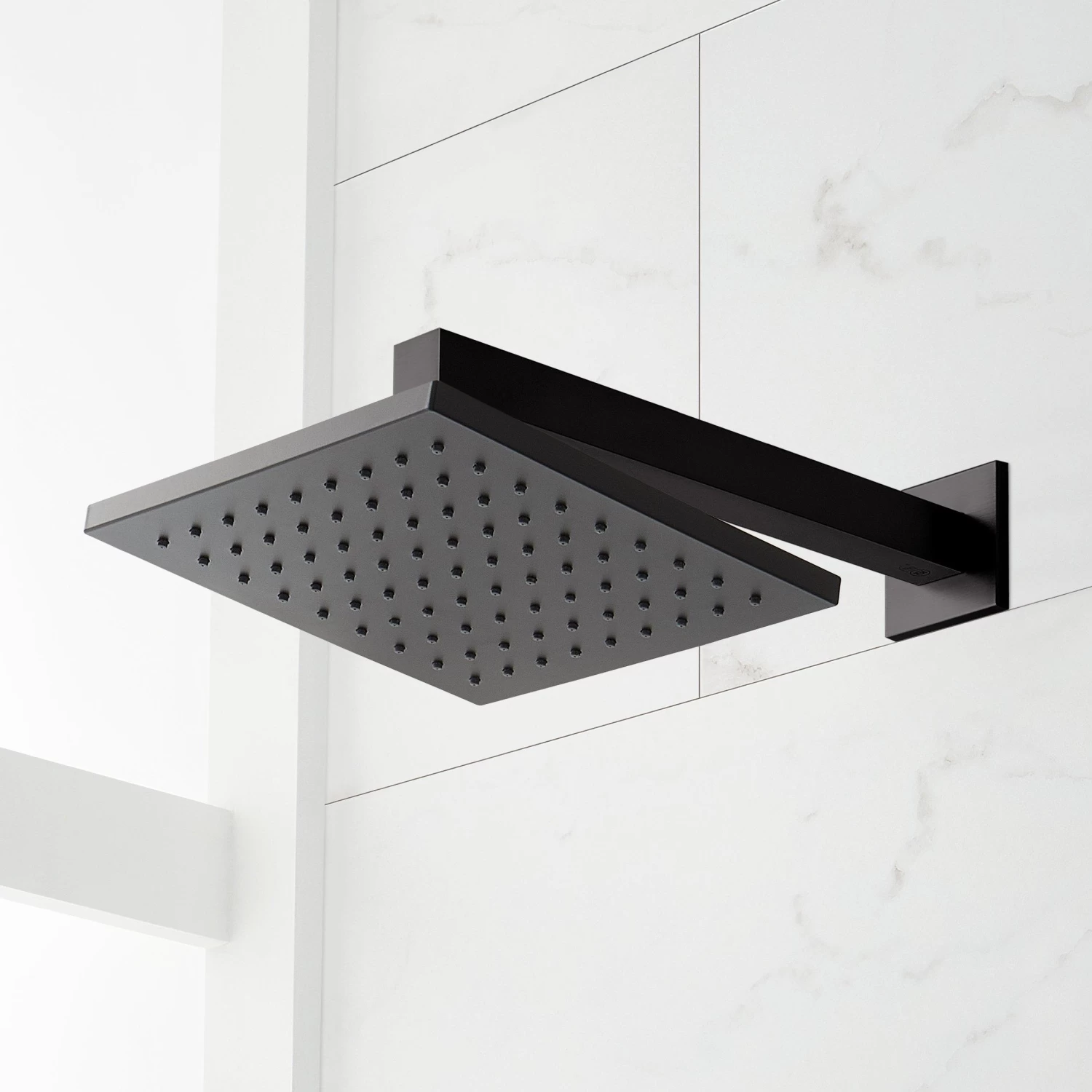

- Single function shower head (full spray) with easy-clean silicone nozzles.

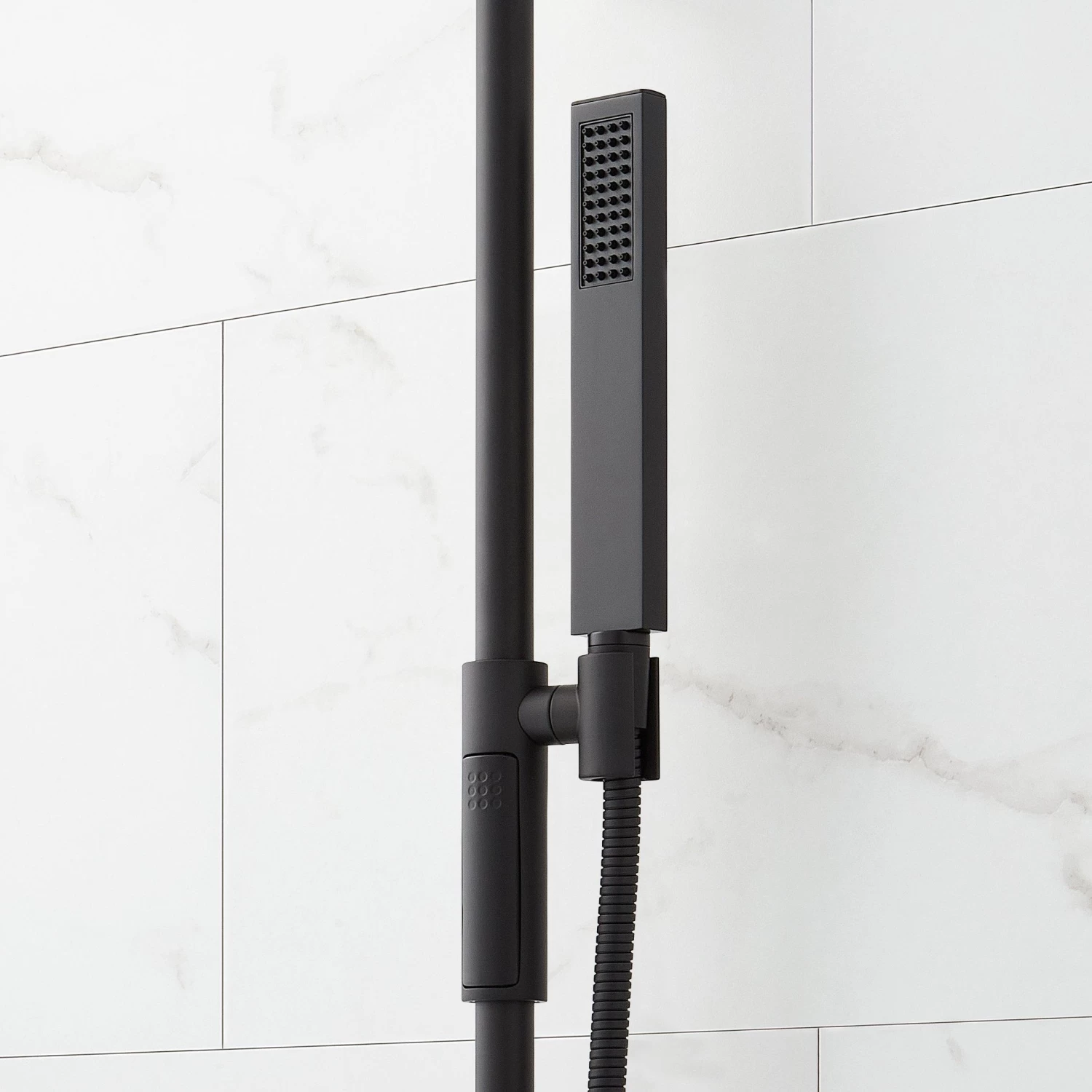

- Single function hand shower.
- 60″ – 72″ stretchable metal shower hose.
- Adjustable angle for hand shower mount.

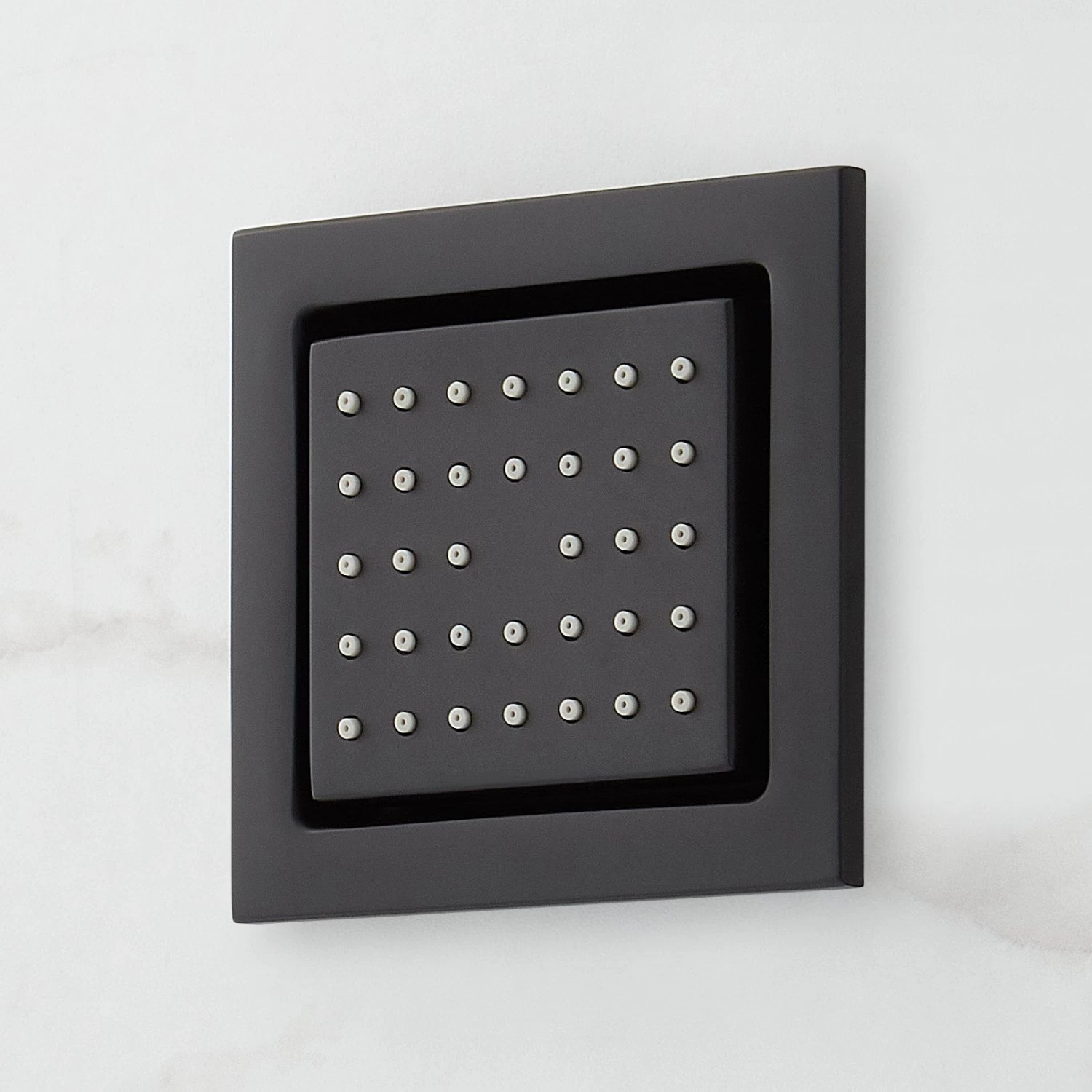

- Body spray jet swivels with a 3-9/16″ surface area.
- Body spray flow rate: 2.5 gpm (9.5L/min) max @ 80 psi.
- Must be installed in accordance with provided installation instructions.
- Recommended valve installation depth 1-5/8″ to 2-3/8″
- Included Rough-in valves:

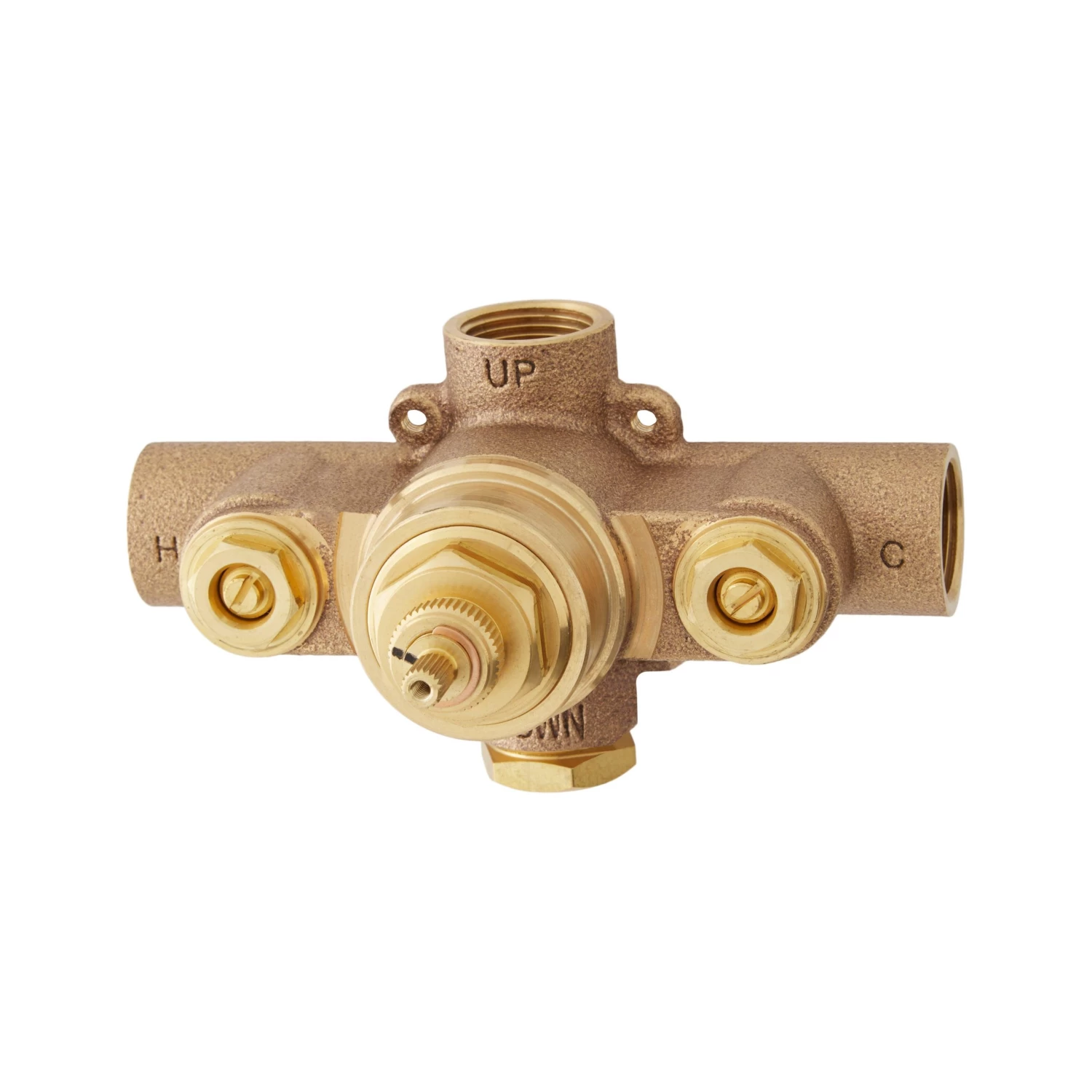

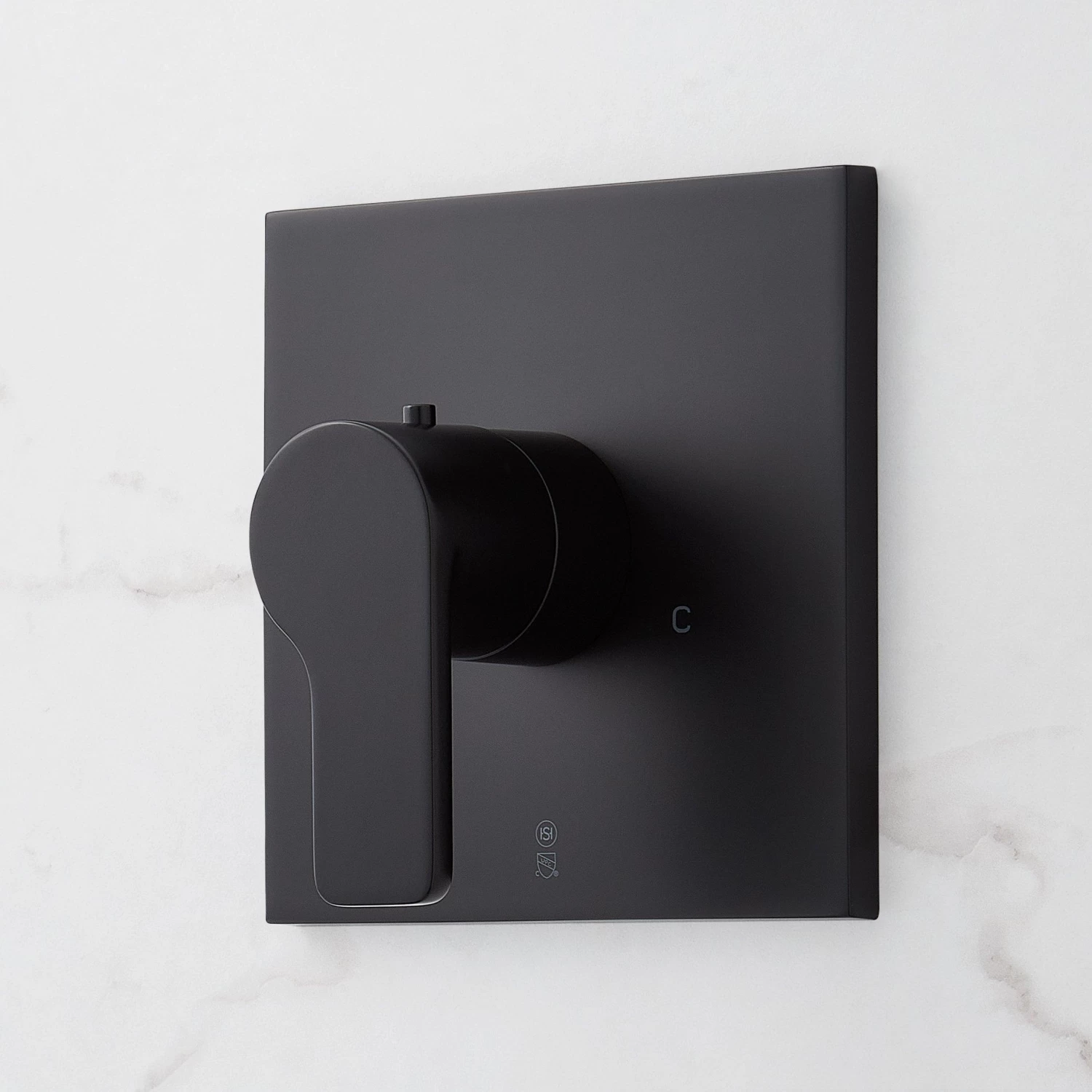

- Thermostatic rough-in valve features scald guard protection, high temperature limit stop, integral water stops and check valve, a ceramic cartridge, and a bronze valve body.

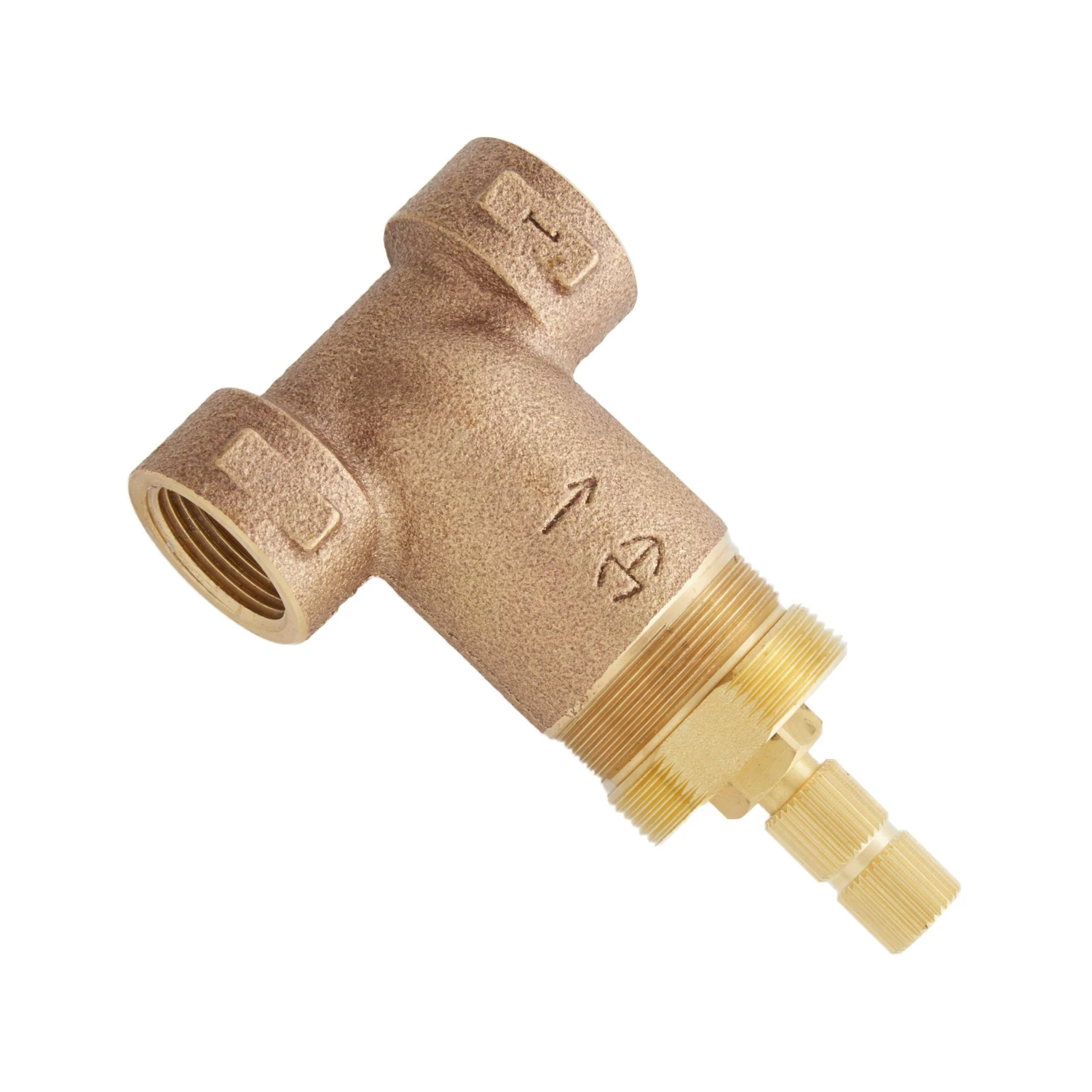

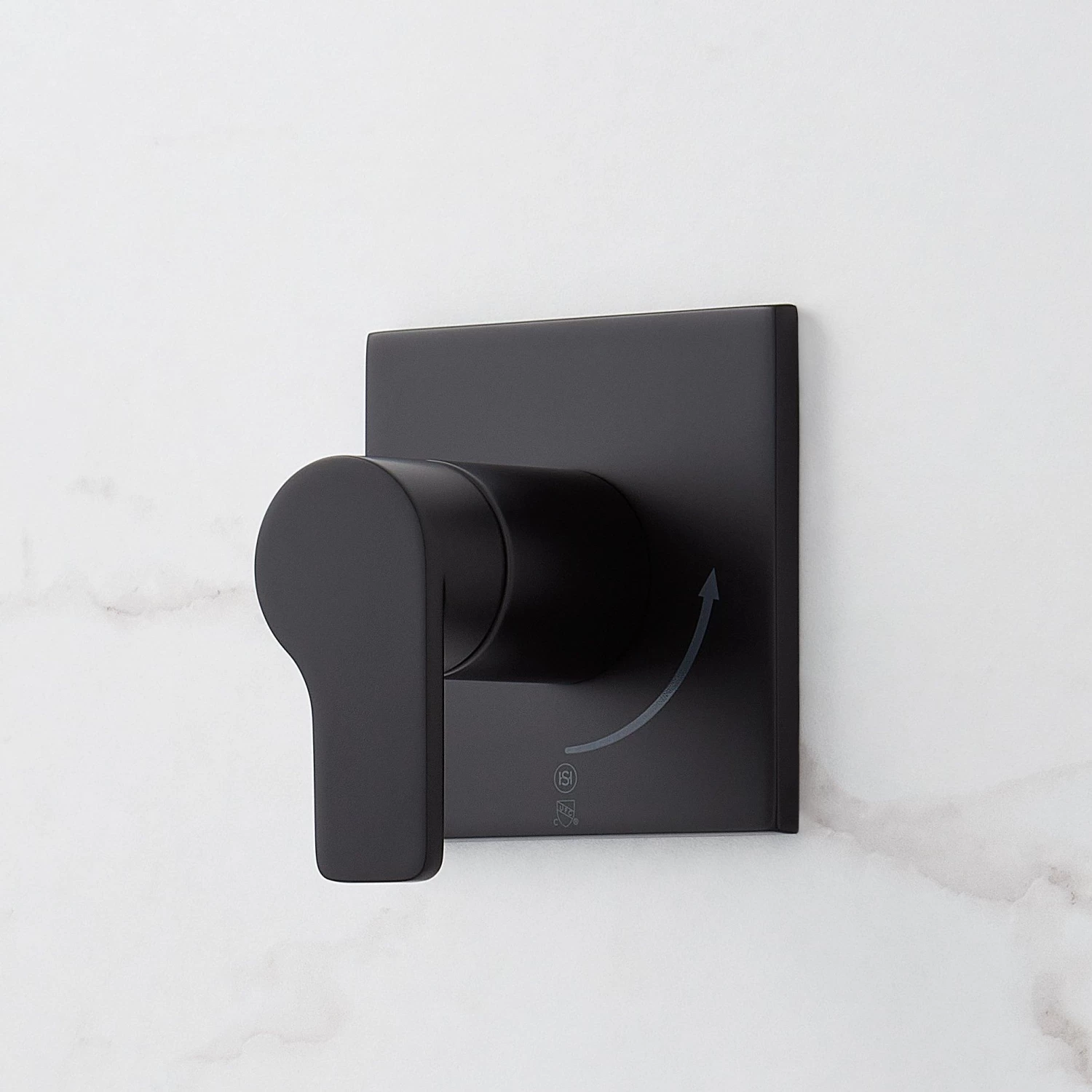

- Volume control rough-in valve features a ceramic disc cartridge and brass valve body.

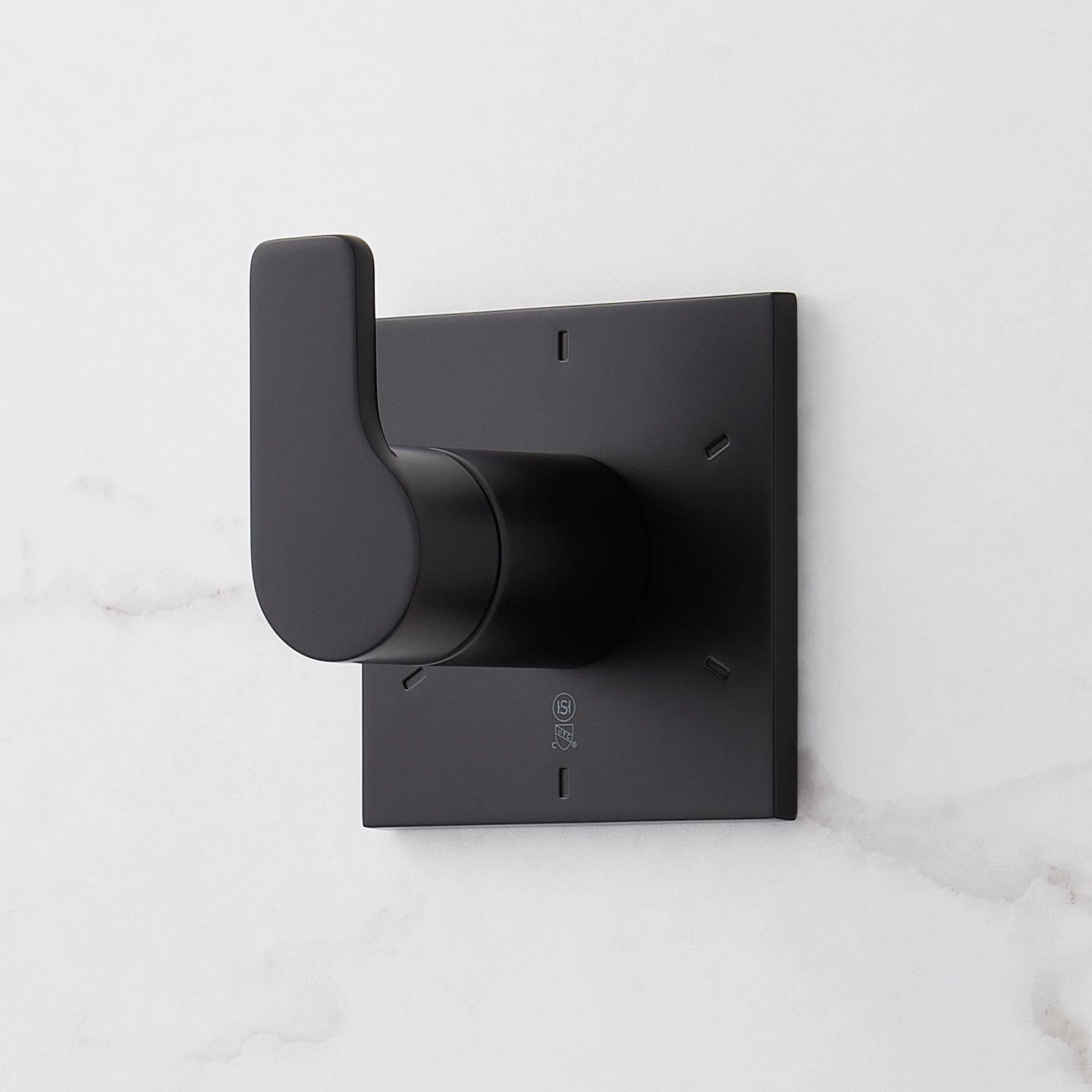

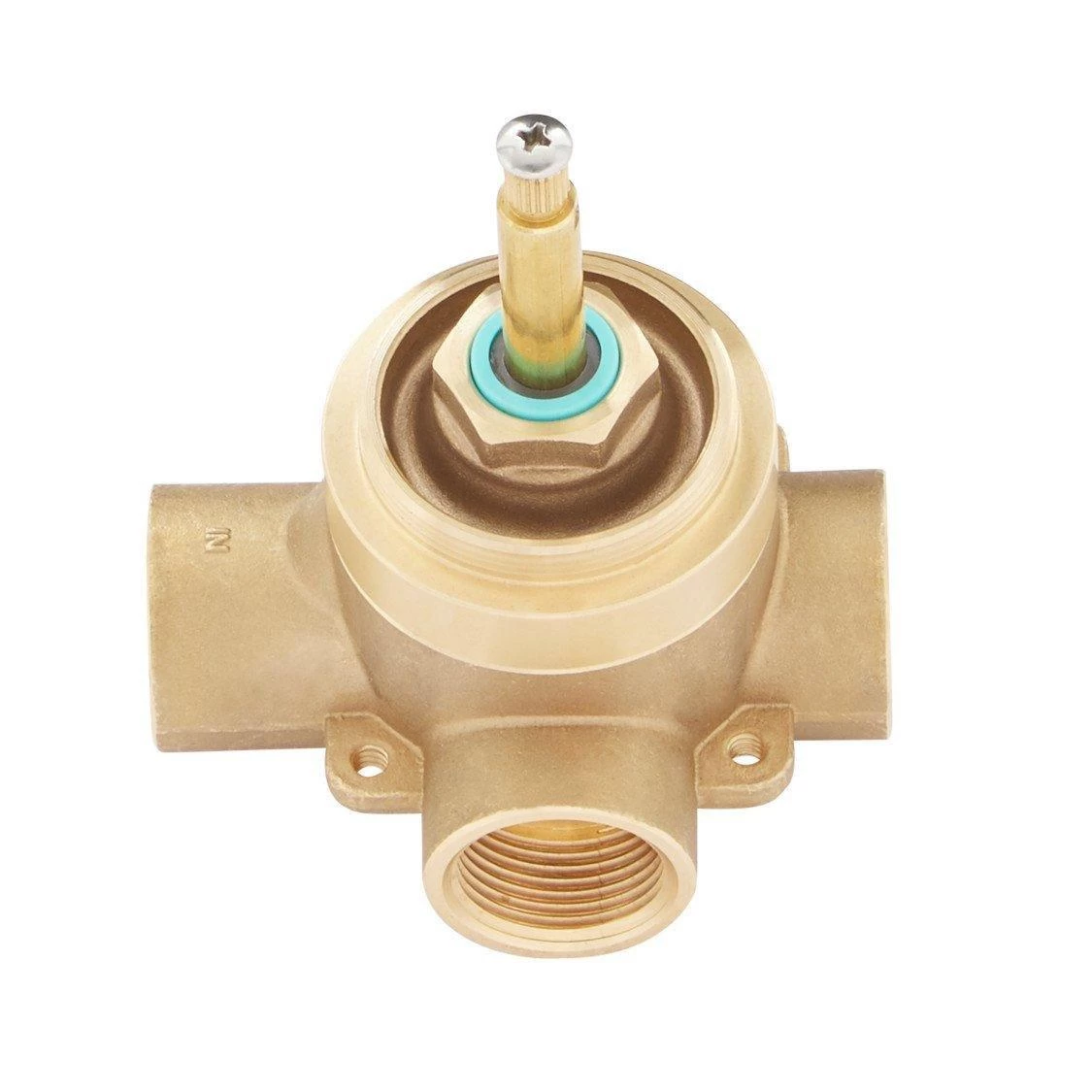

- Diverter valve features a ceramic disc cartridge and brass valve body. An available Single-Function Diverter valve Cartridge restricts water flow to one outlet at a time.
Features
Product Type Shower Systems & Faucets
Body Spray Flow Rate 2.5 gpm (9.5L/min) max @ 60 ps
Body Sprays Yes
Diverter Included Yes
Features Thermostatic
Product Finish Matte Black
Handle Type Lever
Hand Shower Flow Rate 1.8 gpm (6.8 L/min) @ 80 psi
Hand Shower Material Brass
Installation Type Wall
Mounting Hardware Included Yes
Number of Shower Heads 1
Shower Arm Included Yes
Shower Head Flow Rate 1.8 gpm (6.8 L/min) @ 80 psi
Shower Head Installation Type Wall-Mount
Shower Head Material 304-Grade Stainless Steel
Shower Head Spray Rainfall
Shower Head Swivel Yes
Weight (lbs) 26.56
Dimensions
Hand Shower Hose Length 60″
Hand Shower Length 8-7/16″
Shower Arm Extension 12″
Shower Arm Height 2-3/8″
Shower Head IPS 1/2″
Shower Head Length 11-3/4″
Shower Head Width 11-3/4″
Slide Bar Length 30″
Valve Trim Height 6-11/16″
Valve Trim Width 6-11/16″
Trilogie Alt 1
SIG484712
SIG484712
SKU
484712
SHK484712
484712
SHK484712
Component SKUs
SHHB9009MB,SH6006,SHRSA120SMB,SHSH2080GMB,SHHS4080GMB,SHH1010MB,SHWE2020MB,SHHB9005MB,SH6103,SHHB9007MB,SH6040,SHSB3050MB,SHBS6040EMB
SHHB9009MB,SH6006,SHRSA120SMB,SHSH2080GMB,SHHS4080GMB,SHH1010MB,SHWE2020MB,SHHB9005MB,SH6103,SHHB9007MB,SH6040,SHSB3050MB,SHBS6040EMB
